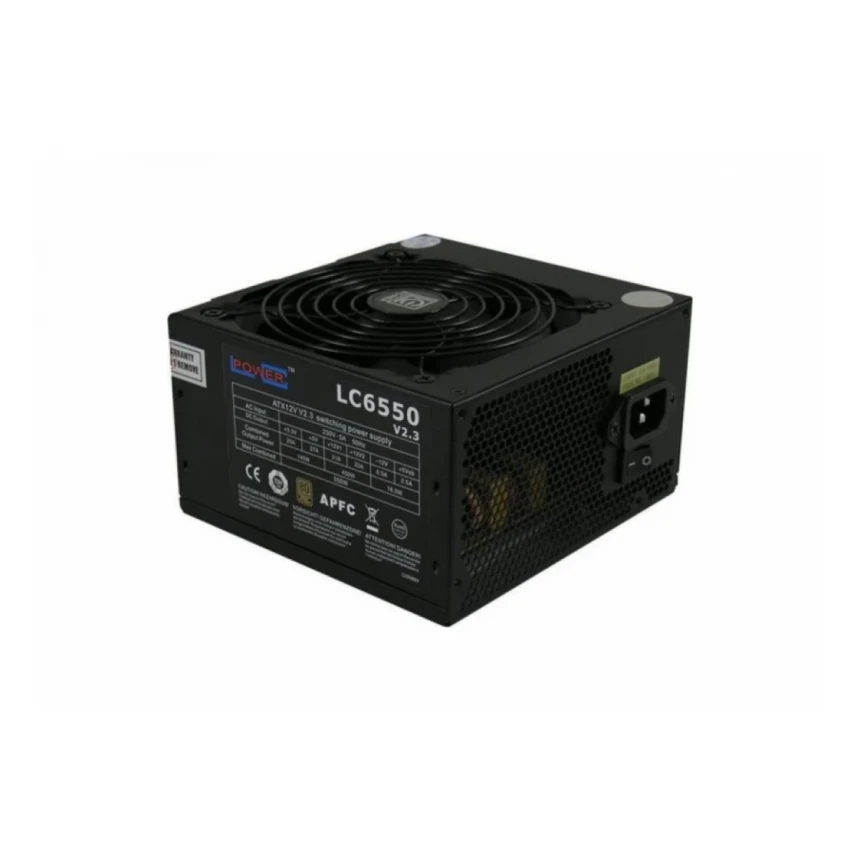

Napajanje 550W LC Power LC6550 V2.3 80 Plus BRONZE

Specifikacija

Power supply type Super Silent Series
ATX standard ATX V2.3
Connectors
20+4 pin mainboard 1x 45 cm
4+4 pin mainboard 12V (8 pin EPS) 1x 45 cm
PCI-Express 1x PCI-Express V2.0 6+2 pin 45 cm
SATA 4 (1x 45/2x 60/1x 75 cm)
PATA 4 (2x 45/2x 60 cm)
FDD - (FDD adapter separate available)
Mark of conformity CE / TÜV
Fan 120 mm
PFC active
Dimension h x w x d 86 x 150 x 140 mm
Weight (retail) 1,752 kg
max. peak load 550 W
+3,3V 25 A
+5V 27 A
max. combined 145 W
+12V1 21 A
+12V2 23 A
max. combined 450 W
Efficiency > 88%
Standby consumption 0,2W - ErP 2013
Temperature control for case fan yes
Security circuitry OVP = Over-Voltage Protection
OCP = Over-Current Protection
OPP = Over-Power Protection
SCP = Short-Circuit Protection
UVP = Under-Voltage Protection
Multirange (110V/220V) no
Haswell compatible yes
Barcode 4260070120589
Manufacturer code LC6550 V2.3
Characteristics:
550W
80 PLUS® BRONZE 230V EU certified
1x PCI-Express V2.0 6+2 pin connector
2x +12V rails
120mm fan
Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry
Garancija 2 godine
