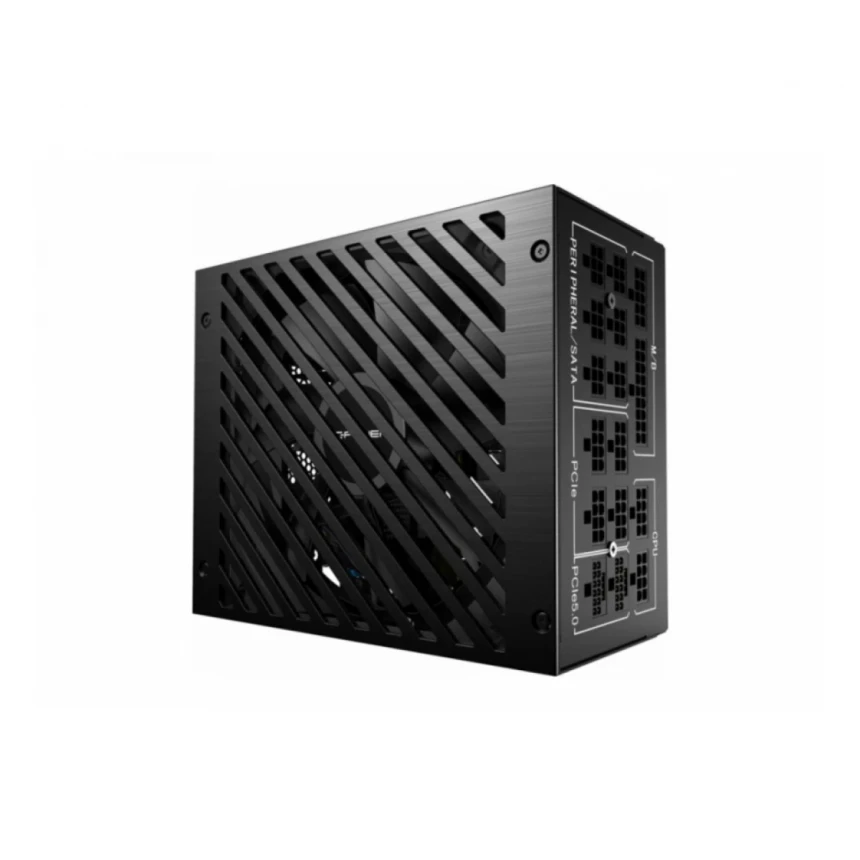

Napajanje 1200W LC Power LC1200P V2.52 80 Plus PLATINUM

Specifikacija
Proizvodjac LC POWER
Power supply series Platinum Series
ATX standard ATX V3.0
Connectors
20+4 pin mainboard 1x 650 mm
4+4 pin mainboard 12 V (8 pin EPS) 2x 650 mm
4 pin mainboard 12 V 1x 800 mm
PCI-Express 5.0 12+4 pin 2x 650 mm
IMPORTANT: Please connect only one graphics card up to 450 W or 600 W to the power supply.
Alternatively two graphics cards up to 300 W each can be connected.
PCI-Express 6+2 pin 8x overall
(4x 675 mm / 4x 750 mm)
How to use
(at the same time) Option 1: 20x SATA & 3x PATA
Option 2: 16x SATA & 6x PATA
SATA 20x overall
(5x 500 mm / 5x 650 mm / 5x 800 mm / 5x 950 mm)
PATA 6x overall
(2x 500 mm/ 2x 650 mm / 2x 800 mm)
FDD 1x 900 mm
Mark of conformity CE / TÜV
Fan 135 mm
PFC active
Dimension PSU 86 x 180 x 150 mm
Dimension retail 120 x 295 x 225 mm
Weight (product / overall) 3,67 / 4,03 kg
Power rating 1200 W
+3,3 V 20 A
+5 V 20 A
max. combined 100 W
+12 V 100 A
max. combined 1200 W
Certified 80 PLUS® PLATINUM
Efficiency up to 92 %
Standby consumption < 0,5 W - ErP 2013
Temperature control for case fan yes
Security circuitry OVP = Over-Voltage Protection
OCP = Over-Current Protection
OPP = Over-Power Protection
SCP = Short-Circuit Protection
UVP = Under-Voltage Protection
Full range (110 V / 220 V) yes
Haswell compatible yes
Colour black
Manufacturer code LC1200P V3.0
EAN 4260070129827
Garancija 3 godine
