Format ATX
bazaIntel 1700
ČipsetIntel Z790
RAM.4x DDR5 DIMM, dual PC5-57600U/DDR5-7200 (OC), maksimalno 192 GB (UDIMM)
Slotovi za proširenje1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe 3.0 x1, 4x M.2/M-Key (PCIe 4.0 x4, 2280/2260), 1x M.2/E-Key (PCIe/ Intel CNVi, 2230, okupiran sa WiFi+BT modulom)

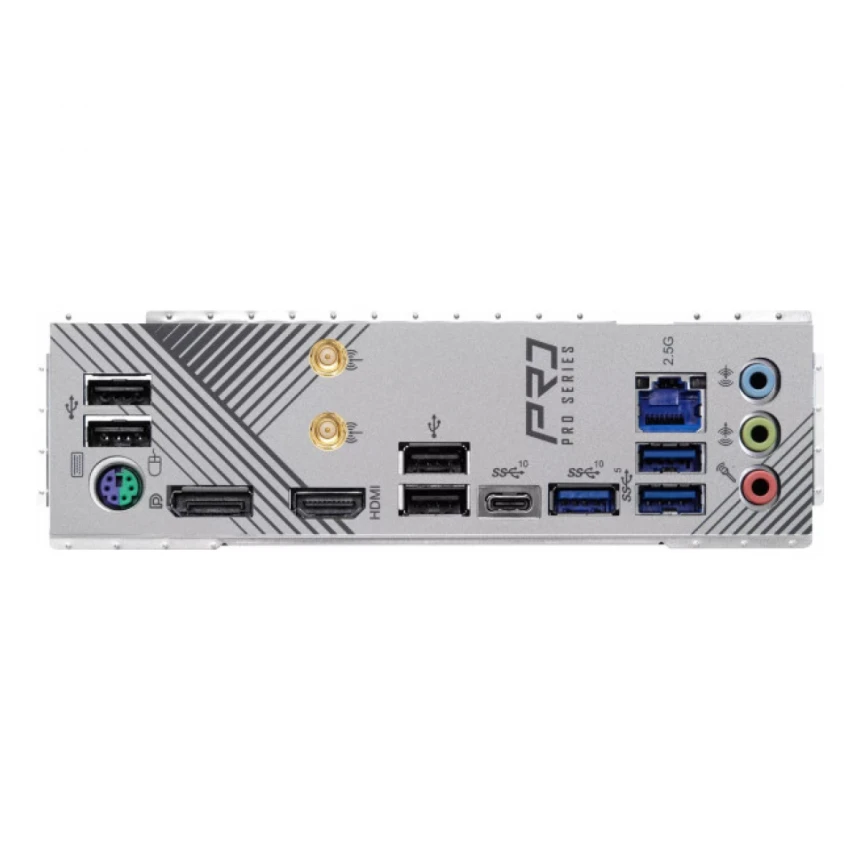

Eksterne veze1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2,5GBase-T (Realtek RTL8125BG), 3x utičnica, 1x PS/2 combo, 2x antenska veza (RP-SMA)
Unutrašnje veze1x USB-C 3.2 Key-A header (20Gb/s), 2x USB 3.0 header (5Gb/s, 4x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 8x SATA 6Gb/ s (Z790), 1x eDP header, 1x TPM header, 1x Thunderbolt header 5-pin, 1x header zvučnika
Hlađenje zaglavlja1x CPU ventilator 4-pinski, 1x CPU ventilator/pumpa 4-pinski, 5x ventilator/pumpa 4-pinski
Osvetljenje zaglavlja1x 4-pinski RGB (+12V/G/R/B, max. 3A), 3x 3-pinski ARGB (+5V/DATA/GND, max. 3A)
Dugmad/prekidačiN/A
Audio7.1 (Realtek ALC897)
grafičkiiGPU
BežičniWi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX211), Bluetooth 5.3
RAID nivo0/1/5/10 (Z790)
Multi-GPUAMD 2-Way CrossFireX (x16/x4)
Priključci za napajanje1x 24-pinski ATX, 2x 8-pinski EPS12V
VRM15 virtuelnih faza (14+1), 7 realnih faza (7+1), PWM kontroler: RT3628AE (maks. 9 faza)
